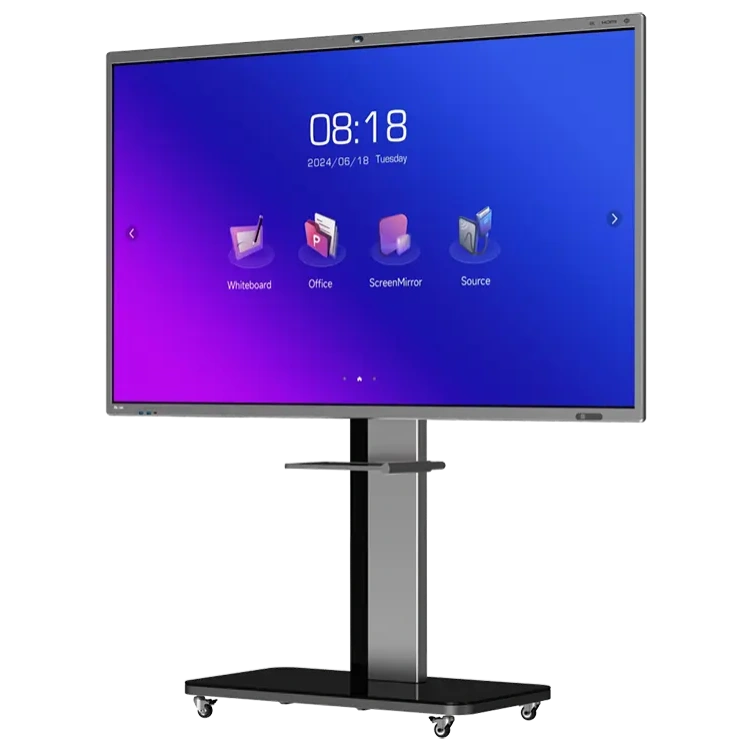

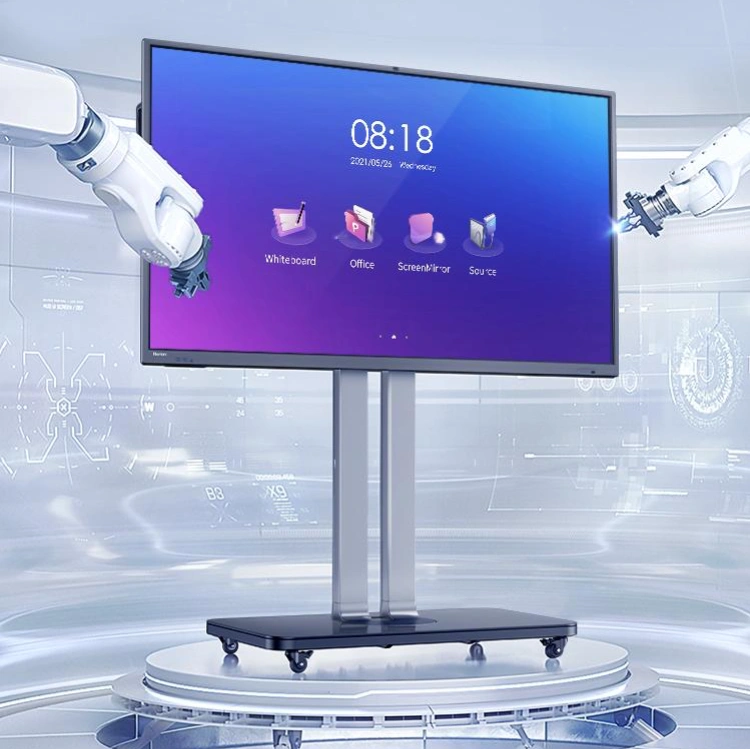

Horion Smart Board 75M6APro

Display

75″ 4K UHD (3840 × 2160), D‑LED backlight, ~380 cd/m² brightness, 178°/178° viewing angle

Touch

IR touch system, supports up to 45‑point multi‑touch, ~1 mm precision

Processor

Octa‑core CPU (Quad Cortex‑A73 + Quad Cortex‑A53, up to 2.2 GHz), Mali‑G52‑MP8 GPU

Memory & Storage

8 GB LPDDR4X RAM, 128 GB internal storage

Operating System

Android 13 (Google EDLA Certified)

Camera

Built‑in 48 MP AI auto‑framing camera with speaker tracking and localization

Microphone

8‑array array mic, 12 m pickup range with AGC & AEC support

Audio Output

Total 60 W (20 W×2 stereo + 20 W subwoofer)

Power Consumption

Approx. 300 W typical

Connectivity

Wi‑Fi 6 (802.11ax), Bluetooth 5.3, NFC, infrared touch sensor, ambient light sensor

Ports (Rear)

HDMI IN×2, DP IN×1, Touch USB×3, USB 2.0×1, USB 3.0×2, LAN×2, MIC IN, Audio IN/OUT, S/PDIF, RS‑232 IN, VGA IN, HDMI OUT, SD card slot

Ports (Front)

USB 3.0×2, Type‑C with 60 W power output, support DRP mode

Touch Pens & Tools

Includes pens ×2, remote control pen, wall‑mount bracket, cables & cables set, warranty card

Lifespan & Build

50,000 hr panel life, rated for ~18 h usage/day, durable aluminum frame (~71 kg)
